autom-16IO

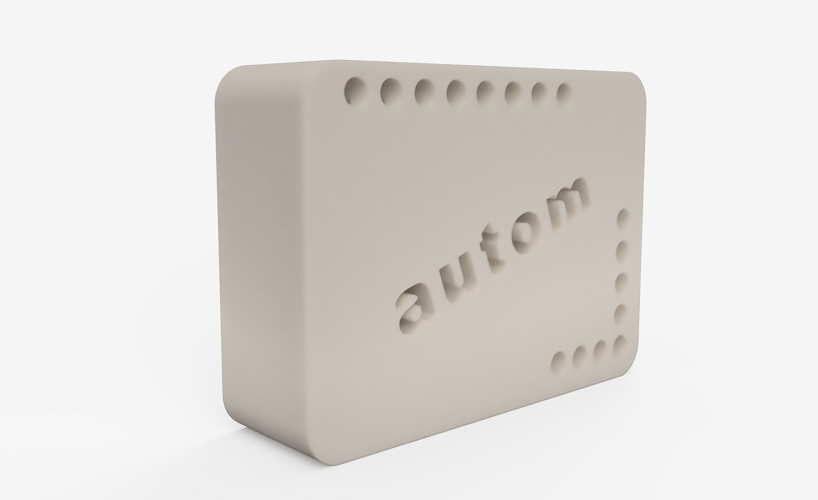

Autom-16IO

8 Input & 8 Appliances Module

Autom-16IO Module allows automation of regular lights, power sockets and fans. autom-16IO have 8 inputs which will be used for switches and sensors, comes with 8 output of 6A rating. It is installed behind the existing switch plate and works in parallel with the mechanical switches

Service Details

Product Features

  • It works without internet and with internet
  • Easy to configure
  • Standalone module, no need of any type of getaway
  • Can be installed in existing wiring
  • Support any type of mechanical switch
  • Customized solution available for this module

Technical Specification

Parameter Details
Power Input 220V-240V AC / 50 Hz
Power Output 220V-240V AC / 50 Hz
Maximum Load 6 Amp
Switch Input Ground
Wireless Protocol TCP/IP, full 802.11 b/g/n/e/i
Processor Dual-Core 32-bit LX6 Microprocessor
Dimensions 130 X 95 X 30 mm

warranty

One year limited warranty
